| Brand Name : | BOSMFC |
| Model Number : | 5050 RGB SMD LED |
| Certification : | Rohs, Reach |
| Payment Terms : | T/T, Western Union, paypal |
| Supply Ability : | 500KK/month |
| Delivery Time : | 5-15 days |
5050 RGB LED---Lanjin catalog.pdf
The 0.5W 5050 RGB LED and 0.6W Tri-color SMD LED are high-quality light-emitting diodes designed for stage lighting applications. These LEDs offer a range of features and are suitable for both indoor and outdoor lighting.
Electrical optical characteristics of 5050 Top smd led:(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Red Green Blue | 620 515 460 | --- | 635 525 473 | nm | IF=20mA |
| Luminous intensity | Iv | Red Green Blue | 450 1600 350 | mcd | IF=20mA | ||
| Forward voltage | VF | Red Green Blue | 2.0 2.8 2.8 | --- | 2.2 3.4 3.4 | V | IF=20mA |
| Viewing angle | --- | 120 | --- | deg | IF=20mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=20mA |

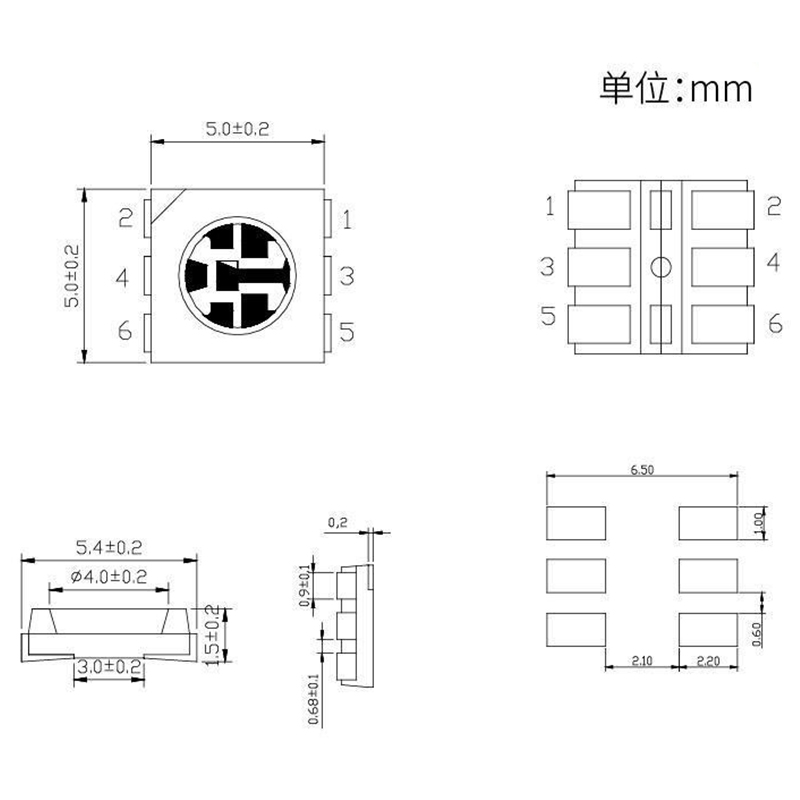

| Operation Temperature | －40~+85℃ | Size | 5.0*5.0*1.5mm |
| Storage Temperature | －40~+100℃ | Packing | 1000pcs/reel |
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static production workshop. Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products comply with the EU RoHS standard. Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other electronics. Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
Q1: Do you supply OEM and ODM services?
A1: Yes, we provide OEM and ODM services. We have over 15 years of
experience in offering customized solutions.
Q2: How can I get a quotation from you?
A2: Please provide us with details about your requirements,
including product parameters, application, contact information, and
quantity. Our professional team will respond to you within one
hour.
Q3: Is there any discount for a bulk order?
A3: Yes, we offer wholesale prices for bulk orders or customized
products.
Q4: What is the lead time for orders?
A4: The lead time depends on the order quantity. Generally, it
takes about 10-15 working days. For standard samples, the delivery
time could be as short as 3 days.
Q5: What payment terms are available?
A5: We accept T/T, PayPal, Western Union, and Secure Payment.
Q6: How do I process an order?
A6: The order process involves the following steps:
1.Provide us with your requirements or application.
2.We will provide a quotation based on your requirements or suggest suitable options.
3.Confirm the samples and place the order. We will arrange production accordingly.
|
|
