| Brand Name : | BOSMFC |
| Model Number : | 5730 SMD LED |
| Certification : | Rohs, Reach |
| Payment Terms : | T/T, Western Union, paypal |
| Supply Ability : | 500KK/month |
| Delivery Time : | 5-15 days |
5730 white SMD LED---Lanjin catalog.pdf

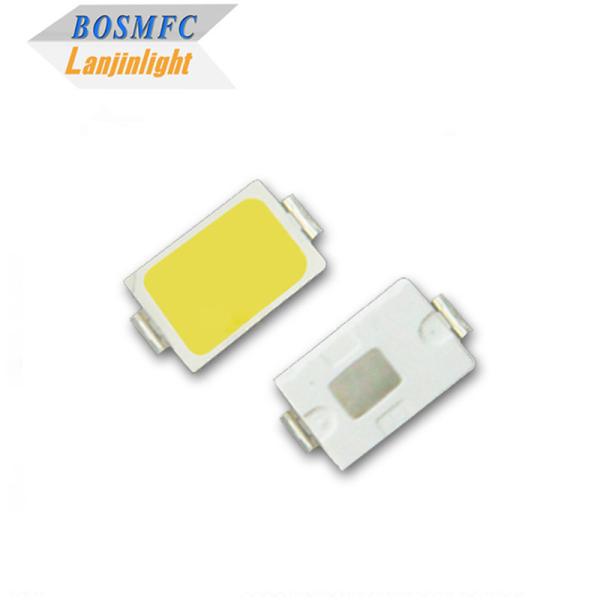

The 5730 SMD LED is a high-quality LED chip diode designed for LED lamp applications. With a power rating of 1W and a high voltage of 18V, provides bright and efficient white light illumination.
Electrical optical characteristics of 2835 Top smd led:(Ta=25°C)
Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
Color temperature | CCT | warm White | 2700 | --- | 3400 | K | IF=150mA |
Natural White | 4000 | 5000 | |||||
Cold White | 6500 | 20,000 | |||||
Luminous intensity | Iv | White | 50 | --- | 85 | LM | IF=150mA |
Forward voltage | VF | White | 3.0 | --- | 3.4 | V | IF=150mA |
Viewing angle | --- | 120 | --- | deg | IF=150mA | ||
Reverse current | IR | White | --- | ---- | 5 | uA | IF=150mA |
Operation Temperature | －40~+85℃ | Size | 5.7*3.0*0.8mm |
Storage Temperature | －40~+100℃ | Packing | 1000pcs/reel |
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static production workshop. Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products comply with the EU RoHS standard. Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
Q1: Are you a factory or a trading company?
A1: We are a professional LED manufacturer of SMD LEDs,
through-hole LEDs, and digital LED displays. We provide one-stop
OEM & ODM services worldwide.
Q2: Can I get samples for testing?
A2: Yes, we welcome sample orders for testing and evaluating our
LED quality.
Q3: Is there any discount for bulk orders?
A3: Yes, we provide wholesale pricing for bulk orders and
customized products.
Q4: How do I choose an LED light source?
A4: When choosing an LED light source, factors such as lumens (LM),
light efficiency (LM/W), and lifespan (hrs) are important. Higher
values indicate better performance. Additionally, the brand of the
LED chip, LED frame, and other materials can influence product
reliability.
Q5: How do I process an order?
A5: The order process involves the following steps:
1.Let us know your requirements or application.
2.We will provide a quote based on your requirements or our suggestions.
3. After confirming the samples, you can place the order, and we will arrange production.
|
|
