| Brand Name : | BOSMFC |
| Model Number : | UVC 3535 SMD LED |
| Certification : | Rohs, reach |
| Price : | |
| Payment Terms : | T/T, Western Union, paypal |
| Supply Ability : | 200KK pcs/ month |
| Delivery Time : | 7-15 days |
The UVC LED chip is a 275nm 3535 SMD UV LED mounted on a ceramic base. It is specifically designed for use in sterilization equipment. This ultraviolet lamp emits light at a wavelength of 280nm, which is effective in killing bacteria, viruses, and other microorganisms. The LED chip is compact and can be easily integrated into various sterilization systems. Its high-performance ceramic base ensures excellent thermal management, allowing for efficient and reliable operation. This UVC LED chip is an ideal choice for applications requiring effective and energy-efficient sterilization capabilities.
Electrical optical characteristics:(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Dominant Wavelength | λd | UV | 270 | --- | 285 | nm | IF=40mA |
| Power dissipation | Pt | UV | 2 | --- | 5 | mW | IF=40mA |
| Forward voltage | VF | UV | 5 | --- | 8 | V | IF=40mA |
| Viewing angle | --- | 120 | --- | deg | IF=40mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=40mA |

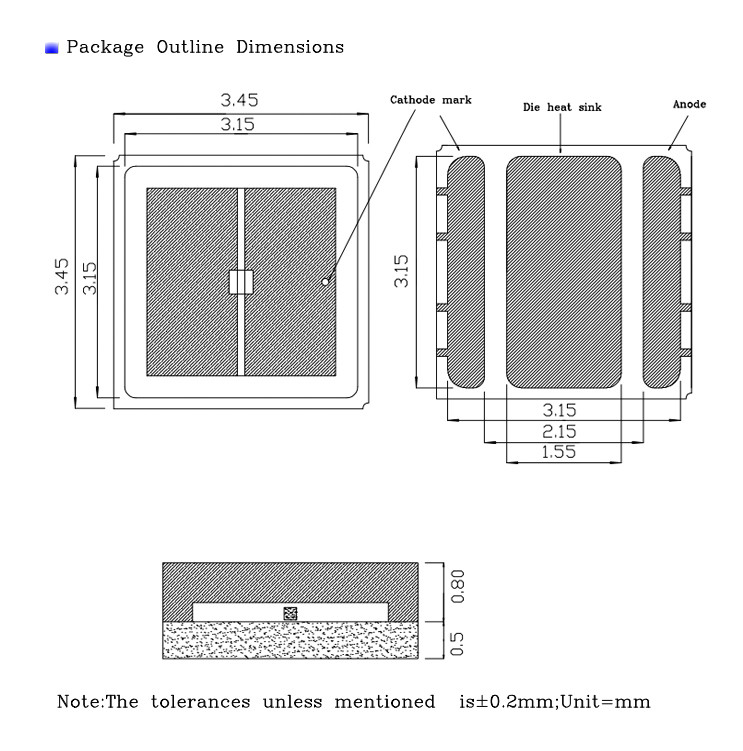

| Operation Temperature | －40~+85℃ | Size | 3.45*3.45*1.3mm |
| Storage Temperature | －40~+100℃ | Packing | 2000pcs/bag |
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static production workshop. Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products comply with the EU RoHS standard. Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
Q1: Are you a factory or a trade company?
A1: We're professional LED manufacturer 18 years in China, providing one-stop OEM & ODM service to all partners all over the world.
Q2: Can I get some samples for tests?
A2: Yes, we provide free samples 1-50pcs to check LED quality.
Q3: Is there any discount for bulk order?
A3: Yes, for bulk order, we can provide discounts according to order quantity.
Q4: What chip you usually use for your led?
A4: Basically, we use Sanan and Epistar chip. We will choose suitable chip for different leds.
Q5: How long of your lead time?
A5:5-7 days for samples, 2-4 weeks for mass order
Q5. How to proceed an order for the led?
A5: for some products, you can buy on our web directly; otherwise,
please contact our sales:
Firstly, let us know your requirements or application.
Secondly, we quote according to your requirements or our
suggestions.
Thirdly, customer confirms the samples and places deposit for
formal order.
Fourthly, we arrange the production.
|
|
