LED lights the world, Lanjin lights your life!
2 Years
| Ask Lasest Price | |
| Brand Name : | BOSMFC |
| Model Number : | 2*5*7mm LED |
| Certification : | Rohs, Reach |
| Payment Terms : | T/T, Western Union, paypal |
| Supply Ability : | 550KK/month |
| Delivery Time : | 5-15 days |

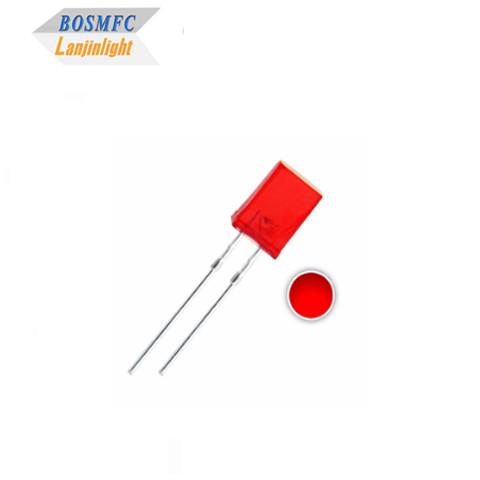

2*5*7mm Red Led Diode---Lanjin catalog.pdf
Electrical optical characteristics :(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Red Green Blue Yellow green Yellow Orange White | 620 520 466 568 584 600 2800K | --- | 630 530 472 576 596 610 12,000K | nm | IF=20mA |
| Luminous intensity | Iv | Red Green Blue Yellow green Yellow Orange White | 220 2500 300 100 400 300 7000 | mcd | IF=20mA | ||
| Forward voltage | VF | Red Green Blue Yellow green Yellow Orange White | 1.8 2.8 2.8 1.8 1.8 1.8 2.8 | --- | 2.4 3.4 3.4 2.4 2.4 2.4 3.4 | V | IF=20mA |
| Viewing angle | 80 | --- | 160 | deg | IF=20mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=20mA |
| Operation Temperature | －40~+85℃ | Size | 2*5*7mm |
| Storage Temperature | －40~+100℃ | Packing | 1000pcs/bag |
Through-hole LED series: Round LED, oval LED, straw hat LED, helmet LED, square LED, flat top LED,
bullet LED, concave LED, rectangle LED
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static production workshop. Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products comply with the EU RoHS standard. Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other electronics. Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
Q1: Are you a factory or a trade company?
A1: We're professional LED manufacturer 18 years in China, providing one-stop OEM & ODM service to all partners all over the world.
Q2: Can I get some samples for tests?
A2: Yes, we provide free samples 1-50pcs to check LED quality.
Q3: Is there any discount for bulk order?
A3: Yes, for bulk order, we can provide discounts according to order quantity.
Q4: What chip you usually use for your led?
A4: Basically, we use Sanan and Epistar chip. We will choose suitable chip for different leds.
Q5: How long of your lead time?
A5:5-7 days for samples, 2-4 weeks for mass order
Q6. How to proceed an order for the led?
A6: for some products, you can buy on our web directly; otherwise,
please contact our sales:
Firstly, let us know your requirements or application.
Secondly, we quote according to your requirements or our
suggestions.
Thirdly, customer confirms the samples and places deposit for
formal order.
Fourthly, we arrange the production.
|
|
